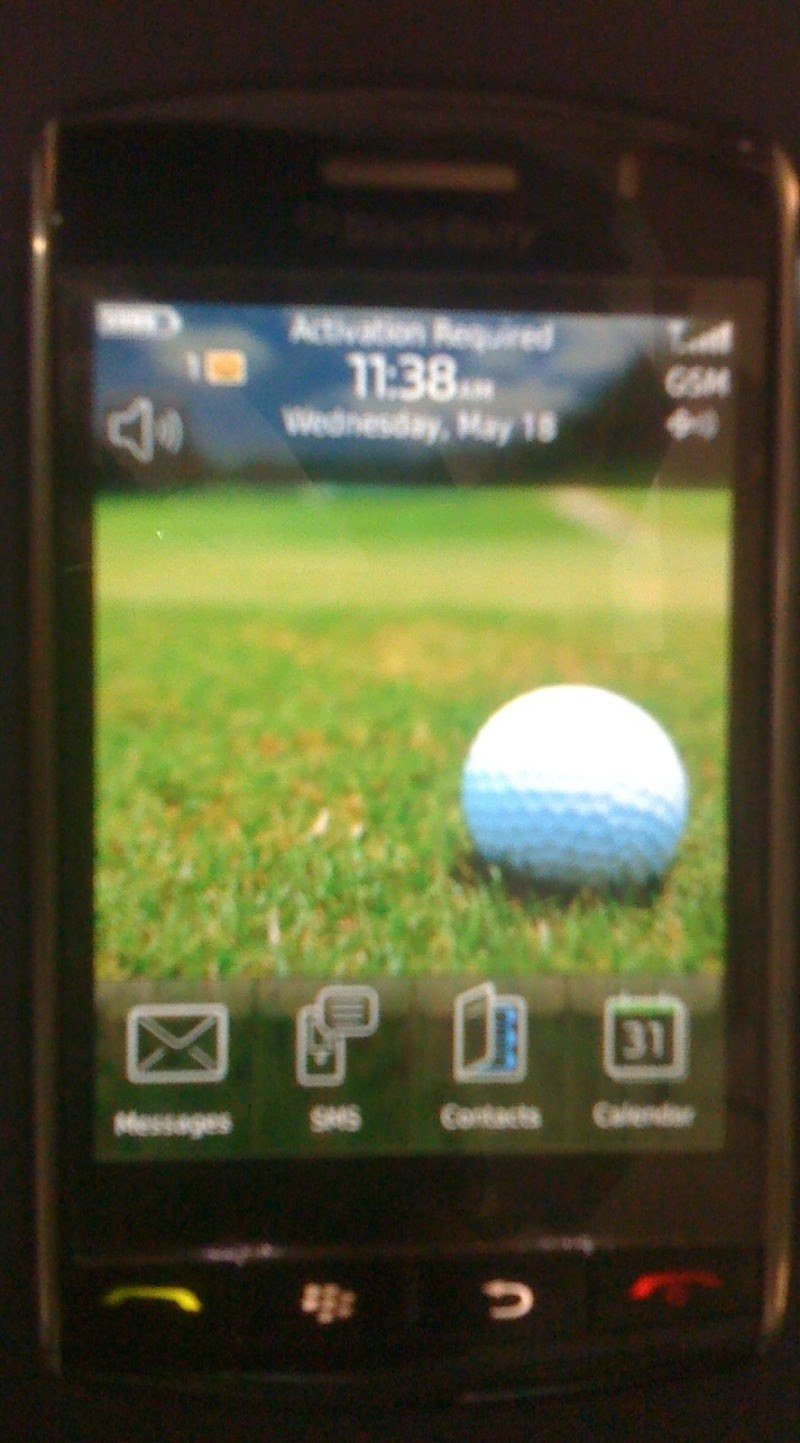

We Can Fix BB 9530 Verizon " Activation Required"

Problem: Activation Required




 Procedure (tricks):

Dial ##000000 and press call key

CDMA Service Edit Screen will appear.

Edit Mobile Directory Number put (1111111111) press Menu and save
The phone will Re-start.. (just wait)

Done

How to Fix BlackBerry 9000 Reload Software: 507

First:


Download the firmware here: http://blackberryrocks.com/2010/01/0...rating-system/
You also need a Motorola USB Cable..

Procedure:
*Download and install firmware
*Don't run after install
*Open Local Disk C:/Program Files/Common Files/Research In Motion/AppLoader
*Delete vendor.xml file and double click loader.exe

Second:
Install the firmware

 All done!

Nokia C1-00 No Power Done in MXkey!

Procedure

open mx key software
select interface
dct4 tab at check x gold
load flashfiles
tick flash
wait until finish

logs

Code:

Using device: UFS_USB V2.8 (c) SarasSoft 2007.
Library version: 1.0.0.9100(23-12-2010), 1.0.0.15124(23-12-2010)
Do not disconnect or abort this operation otherwise phone will be damaged.
Device synchronized.
CPU ID: A200341100 [X-GOLD 110]
Sending Primary Boot Loader ...OK
Changing baudrate to: 921600
Sending Secondary Boot Loader ...OK
BootloaderString: SE0_091125  F11
Boot mode: CC
EBL version: 10.13, Default_RAM_Bootloader
Flash ID: 00EC 2254 [Samsung K8S6415ETC,64 Mbits]
Processing CODE:hw_s01_rm689_r02.600.fls from file rm689_002.600
Erasing area 0x00800000-0x00A0FFFE ...OK
Programming ...
Programming completed in 2 min 8.312 s
Erasing area 0x00C60000-0x00EAFFFE ...OK
Programming ...
Programming completed in 1 min 46.172 s
Erasing area 0x00FFC000-0x00FFFFFE ...OK
Programming ...
Programming completed in 0.062 s
Checksum OK (0x9AAF)
Processing CUST:hw_s01_rm689_002.60ia.fls from file rm689_002.60ia
Erasing area 0x00210000-0x0045FFFE ...OK
Programming ...
Programming completed in 1 min 58.672 s
Checksum OK (0xE090)
Processing CUST:hw_s01_rm6890_nai02.60ia.fls from file rm6890_nai02.60ia
Erasing area 0x00EB0000-0x00F7FFFE ...OK
Programming ...
Programming completed in 18.140 s
Checksum OK (0xCB24)
Flashing completed in 7 min 32.344 s


Nokia 2690 white screen revived by MXBOX (HTI)

Phone status:
Nokia after 15 sec white screen

procedure:
full flash in mx key using MXBOX HTI













All done....

Samsung s5620 flash,unlock with time out error tricks done..

just wanna share this new tricks iv found in samsung s5620.(tricks nga ba;)))

needed
mini-usb ca-101 cables
multiloader and ofcourse the firmware download at z3x support

phone is phone freeze status thats why need to flash in multiloader afters
screenshoot


flashing finish proceed to unlocking

huhuhu...there is error unlocking on z3x


now here is the tricks
see screenshoot,tips and trick inside and the finish product


logs

Selected model: S5620
Selected com port: COM3
Selected speed port: 921600
Phone must be ON
Search modem ... OK
Search modem on:COM49
Phone OLD IMEI: 352053xxxxxxx /2
Phone SW: S5620DXJE1/S5620OLBJE1
Search flash modem ...
Search flash modem ...
Search flash modem ... OK
Search flash modem on:COM38
Send loader...
Timeout
Timeout
Elapsed time: 36 second, sw ver: 3.5.0008
-------------------------------------------------------------------------------
Selected model: S5620
Selected com port: COM3
Selected speed port: 921600
Phone must be ON
Search modem ...
Timeout for ping modem
Elapsed time: 33 second, sw ver: 3.5.0008
-------------------------------------------------------------------------------
Selected model: S5620
Selected com port: COM3
Selected speed port: 921600
Phone must be ON
Search modem ...
Timeout for ping modem
Elapsed time: 34 second, sw ver: 3.5.0008
-------------------------------------------------------------------------------
Selected model: S5620
Selected com port: COM3
Selected speed port: 921600
For this algoritm use micro UART cable !
Phone must be OFF
Search phone... Fail !
Elapsed time: 16 second, sw ver: 3.5.0008
-------------------------------------------------------------------------------
Selected model: S5620
Selected com port: COM3
Selected speed port: 921600
Phone must be ON
Search modem ... OK
Search modem on:COM38
Phone OLD IMEI: 352053xxxxxxxx /2
Phone SW: S5620DXJE1/S5620OLBJE1
Search flash modem ...
Search flash modem ...
Card removed!
Search flash modem ... OK
Search flash modem on:COM38
Send loader... OK
Wait for boot ...
Phone must be ON
Search modem ... OK
Search modem on:COM49
MSL DEACTIVATED - TRUE
Net locks - cleared
Reset phone code to - > 00000000
Reset sim block code to - > 00000000
Search flash modem ...
Search flash modem ...
Search flash modem ...
Search flash modem ...
Search flash modem ...
Search flash modem ... OK
Search flash modem on:COM38
Send loader... OK
Elapsed time: 104 second, sw ver: 3.5.0008




done..

Credits goes to admin livestrong

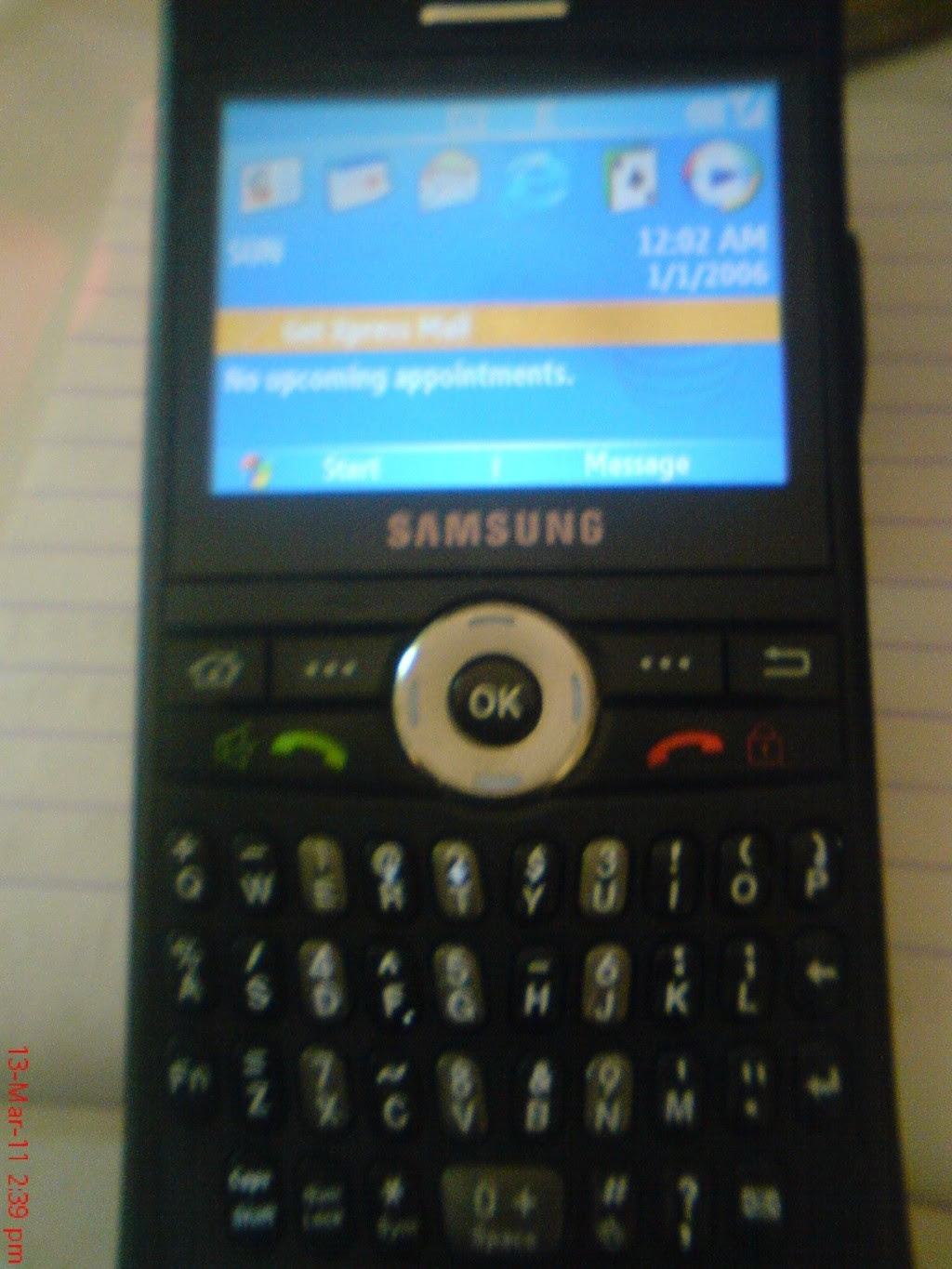

samsung I607 unlock done...

Needed:

z3x box (samsung activated)
cable I607
PC or Laptop








Finish Product

NOKIA 5230 NEW HARDWARE SOLUTION

POWER SWITCH WAY




CHARGING SOLUTION




SPEAKER SOLUTION




TOUCH KEY SOLUTION




LCD DISPLAY SOLUTION




]color=blue]CAMERA SOLUTION[/color]




SIM SOLUTION




HAND FREE SOLUTION




MIC SOLUTION




KEYPAD SOLUTION



Credits goes to original uploader

SAMSUNG A697 UNLOCK BY Z3X

PROCEDURE:

LOCK: AT@T

SELECT S3650W

HIT DIRECT UNLOCK

USE CABLE E210 COMBO

FINISH PRODUCT:

Close kayo noon. Sana ganito parin ngayon. Reconnect this Mother's Day. #PLDTMothersDay

Close kayo noon. Sana ganito parin ngayon. Reconnect this Mother's Day. #PLDTMothersDay

Q4 Cherry Mobile IMEI Invalid Done By Rebuild IMEI

Unit: Q4 Cherry Mobile
Problem: imei invalid

before

Tools:
GPGDragon Box
P - 08A cable

Procedure:
Read Info
Rebuild IMEI

Logs:

Initializing...
 DA_LIB_VER_3.2.2.7
 Tip: The phone must be able to power-on normally
 It is sensing the pinout fast,please hold on the phone Power key
 RXD=3  TXD=2
 Connecting...Please hold on the POWER key until the red gauge is going...
 BB:6223,    HardwareVer:8A05,    SoftwareVer:8A00
 Read info...ok, Waitting enter meta...
 Connected...can release Power button now, tracking...
 Unable to locate LID, Force write...
 Lid=0x2_0x0073, Val=FFFFFFFFFFFFFF0F0000
 Lid=0x1_0x0073, Val=FFFFFFFFFFFFFF0F0000
 Lid=0x2_0x00B1, Val=00000000000000000000
 Lid=0x1_0x00B1, Val=00000000000000000000
 All done.

 All Done..

Credits goes to original uploader!

C3303k Unlock Done via USB by Z3X

C3303k unlock by Z3X with UST S8300 usb cable.......

Selected model: C3303
Selected com port: COM3
Selected speed port: 921600
Press "volume up" + "lock" and connect USB cable to phone
Connect to control pipe... OK
Processor ID -> 0A33
Sending loader... OK
Connect to control pipe... OK
Connect to write pipe... OK
Connect to read pipe... OK
Damping... OK
Erasing... OK
Sending... OK
Unlock - ok
If lock - not deactivate: Please make full reset *2767*3855# + input code #7465625*638*00000000#
Elapsed time: 156 second, sw ver: 3.5.0011

Nokia BB5 General Information

RAP = Radio Application Processor

RAPS = Radio Application Processor Stack

RAP3G = 3G Radio Application Processor

RAP3GS = 3G Radio Application Processor Stack



* RAP3G v2.0E PA

6680 (RM-36)
6681 (RM-57)


* RAP3G v2.10E PA

6630 (RM-1)


* RAP3G_v2.11

N70 (RM-84)
N90 (RM-42)


* RAP3G_v2.20E-PA

E60 (RM-49)
E65 (RM-208)
E70 (RM-10)
N91 (RM-43)
N71 (RM-67)


* RAP3G_3.0E_PA

6151 (RM-200)
6233 (RM-145)
6234 (RM-123)
6280 (RM-78)


* RAP_v2.21E-PA

N72 (RM-180)


* RAPGSM_1.1_PA

3110c (RM-237)
3109c (RM-274)
3250 (RM-38)
3500c (RM-272/273)
5200 (RM-174/181)
5300 (RM-146/147)
5500 (RM-86/87)
6085 (RM-198)
6086 (RM-188)
6125 (RM-178)
6126 (RM-115)
6131NFC (RM-216)
6136 (RM-199)
6270 (RM-56)
6300 (RM-217/222)
6301 (RM-322)
7370 (RM-70)
7373 (RM-209)
7390 (RM-140)
7500 (RM-249/250)
8800 (RM-164)


* RAP3GS_v2.0E_PA

3210c (RM-364/365)
3555 (RM-257/270/277)
3610f (429)
5610 (RM-242)
6212 (RM-396)
6500c (RM-265)
6500s (RM-240)
6555 (RM-276/271/289)
7900 (RM-264)
8800Arte (RM-233)
E61 (RM-89)
N73 (RM-133)
N77 (RM-194/195)
N80 (RM-92)
N92 (RM-100)
N93 (RM-55)


* RAPS_v3.01E-PA/MREFLEX_EPA

5310 (RM-303/304)
5610d-2 (RM-359)
6500c (RM-265)


* RAP3GS_v3.02_PA

6600f (RM-325)
6600s (RM-414)
6600i (RM-570)


* RAPS_v3.03_PA

2690 (RM-635)
2700c (RM-561)
2730c (RM-578/579)
3600s (RM-352)
3720 (RM-518)
5130 (RM-495/496)
5220 (RM-410/411)
6202c (RM-458)
6208c (RM-458)
6303c (RM-443)
7310c (RM-378/379)
7510a (RM-398)
7610s (RM-354)


* RAPIDO_v1.11_P

5700 (RM-230)
6290 (RM-176)
N76 (RM-135)


* RAPIDO_2G_v1.11_P

N76 (RM-149)
N95 (RM-245)


* RAPIDOYAWE_v1.11_PA_385ZWK

N95 (RM-159)


* RAPIDO_v1.12_PA

N81 (RM-223)
NM706i (RM-448)


* RAPIDO_2G_V1.12_PA_385ZW

N82 (RM-314)


* RAPIDO_v1.13_PA

E63 (RM-437/449/450)


* RAPIDOYAWE_v1.12_PA_360ZAP - PA_SL2

N78 (RM-342)
N78 (RM-235)


* RAPIDOYAWE_v1.12_PA_385ZWK

6110n (RM-122)
6120c (RM-243)
6121 (RM-308)
6124c (RM-422)
E51 (RM-244)
E66 (RM-343/345/420)
E71 (RM-346/357/407)
NM705i (RM-309)
N82 (RM-313)
N95 8GB (RM-320/321)


* RAPIDOYAWE_v1.13_PA

5320 (RM-409/417)
5800d (RM-356/428)
6220c (RM-328)
6210n (RM-367/408)
6650d (RM-400)
6760s (RM-573)
6790s (RM-492/599)
E71 (RM-346/357/407)
N96 (RM-247/279/472)


* RAPIDOYAWE_V1.15G_PA_385ZWK

C6-00 (RM-612)


* RAPIDO CPU phones

5230 (RM-588/594/629)
5530 (RM-504)
5730s (RM-465)
E5-00 (RM-632)
E75 (RM-412/413)
N79 (RM-348)
N85 (RM-333/334/335)
N86 (RM-484/485/486)
N97 (RM-505/506/507)
N97mini (RM-555)
X6 (RM-551/552/559)


* RAPUYAMA_v1.11_PR_RITSA_BGA401

5630d (RM-431)
6260s (RM-368)
6700c (RM-470)
6700s (RM-576/577)
6710n (RM-491)
6720c (RM-424/564)
6730 (RM-547)
6730c (RM-566)
6750 (RM-381)
E52 (RM-481/469)
E55 (RM-482)
E72 (RM-529/530)


* RAPUYAMA_v1.13_PR_RITSA_BGA401


C5-00 (RM-645)


* RAP3GS2 v4.1/4.11_C021 - RAP3Gv4

3710f (RM-509)
3710a-1b (RM-510)
3711a (RM-511)


* RAPS2 v4.1/4.11 - RAP3Gv4

X3 (RM-540)
6303i (RM-638)
7230 (RM-598/604)
X5-01 (RM-627)


* RAP3GS2_v4.12 - RAP3Gv4

5330 (RM-615)


* Broadcom and ST CPU phones

C3-00 (RM-614)
2710n (RM-586)
7020a (RM-497)
X2-00 (RM-618)
6316 (RM-595)
6788 (RM-567)
6788i (RM-636)
X5-00 (RM-678)

Nokia X3 Microphone Ways Problem

This post holds Nokia X3 Mic Microphone Ways Problem. If you are having one of these problems check these images out and do these simple solutions.

X3 Mic Problem
X3 Mic Ways
X3 Mic Jumpers
X3 Microphone Ways
X3 Microphone Jumpers
X3 Microphone Problem

Here Are The Solutions. Please Observe Carefully.

Nokia X3 Charging Problem

Nokia X3 Charging Problem 101% Working Solution

This post holds 100% working solutions for Nokia X3 not-charging problems. If you are having anyone of these problems, check out the images and follow the simple instructions.

X3 Charging solutions
X3 Charging Problem
X3 Charging Ways
X3 Charging 100% Workig Solution
X3 Not charging solutions

Just Do first two solutions Your problem will be 100% Solved No Doubt.

Nokia X3 Keypad Ways

X3 Keypad Problem
X3 Keypad Ways
X3 Keypad Jumpers
X3 keypad Tracks
X3 keypad Ic jumpers
NOKIA X3 Keypad Problem
NOKIA X3 Keypad Ways
NOKIA X3 Keypad Jumpers
NOKIA X3 keypad Tracks
NOKIA X3 keypad Ic jumpers

Here Are The Solutions. Please Observe Carefully.

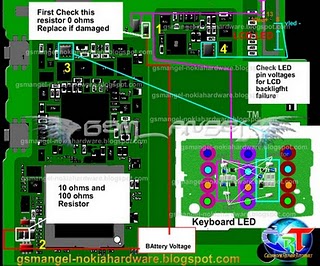

Nokia X3 Display Lights Problem

Nokia X3 Display Lights Problem

credits to original uploader...

Nokia X6 Charging Problems

This post holds 100% working solutions for Nokia X6 not-charging problems. If you are having anyone of these problems, check out the images and follow the simple instructions.

X6 Charging solutions,
Nokia X6 Charging ,
X6 Charging Ways,
X6 Charging 100% Workig Solution,
X6 Not charging solutions,
X6 Not charging Problem,



Just Do first two solutions Your problem will be 100% Solved No Doubt

This solution will show you and guide to fix Nokia X6 charging problem issues like Not charging, charger no response when plug-in. This common problem occurs when the said handset is damaged by a liquid or water damaged, excessive charger voltage is being feed to the device or by using a non compatible battery charger to it.

3250 bluetooth problem check it

3250 bluetooth problem check it

Sony Ericsson W550i Keypad Ways Problem



• W550i Keypad Problem
• W550i Keypad IC Problem
• W550i Keypad Ways
• W550i Keypad Not Working
• W550i Keypad Ic Bypass Solution

Nokia E7 Charger Not Supported Solution

Nokia E7 Charger Not Supported Solution

credits goes to original uploader..

NOKIA E60 LIGHT WAYS

NOKIA E60 LIGHT WAYS

Sony Ericsson C905 Speaker Earpiece Ways Problem

• C905 Speaker Problem
• C905 Earpiece Problem
• C905 Speaker Ways
• C905 Earpiece Ways
• C905 Speaker Jumpers
• C905 Earpiece Jumpers
