Sunday, September 30, 2012
iPhone 4S v5.1.1 Update to iOs 6
iPhone 4S version 5.1.1 Restore and update to iOs 6
history:
gustong ni costumer matanggal yung jailbreak at update s iOs 6
procedure:
1. first check if factory unlock ang unit
2. connect usb prepare DFU mode use (ireb-r5 select iphone4)
3. proceed to restore on itunes use latest version 10.7
4. press SHIFT + click restore
5. select IPSW (iPhone4,1_6.0_10A403_Restore.ipsw)
6. wait until done restoring...
screenshot:

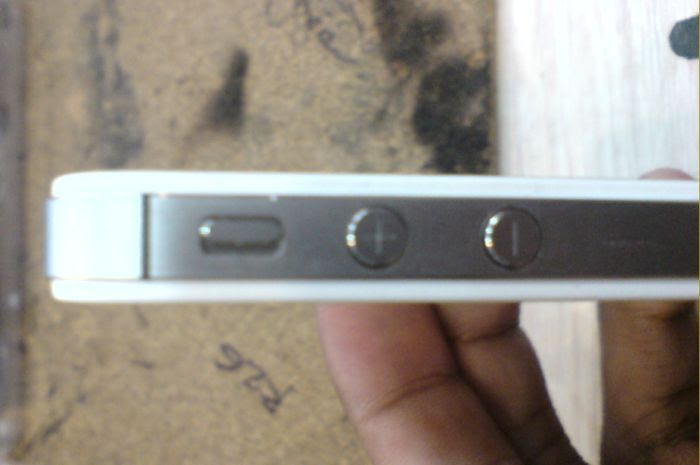

check ko muna kung factory unlock
check software version
paliwanag sa costumer ang issue ng iOs 6
aware naman si costumer ko kaya proceed restore..,
Restoring
activate phone, insert sim and connect wifi or via itunes
and your done..,
at ito na sya iOs 6 na:
DONE.
sony xperia LT18i security code 20 times attemp done by update service only
wanna share for refference LT18i xperia problem is 20 times attemp security code
di na ma open menu ,wala palang reset commend ang xperia na to
i try to used update service
select product LT18 xperia
connect as updater guide
now downloading update firmware and wait till daone and finish
just for newbie only
Friday, September 28, 2012
Nokia x3-02 touchscreen failed done in hardware!
x3-02 touchscreen problem
ito po ginawa ko,,reball ko lg po itong touch driver,
at ito po resulta ng pag tiyatyaga ko,,
thanks for viewing
ito po ginawa ko,,reball ko lg po itong touch driver,
at ito po resulta ng pag tiyatyaga ko,,
thanks for viewing
Nokia 6555b at@t unlock by HWK done
ito po logs
MCU SW : V 03.31 01-08-07 RM-289 (c) Nokia
PPM SW : V 03.31 01-08-07 RM-289 (c) Nokia NAT
Product : Nokia 6555b
Prd.Code: 0541446
Bpr.Code: 0541445
Prod.Sn : RHK296238
HW Vers : 5000
EM VILMA: 15
EM BETTY: 22
RFIC Ver: 17141714
DSP Vers: GA_RAP_PB_2006_wk41v26_02
LCD Type: SEIKO
IMEI : 356271-01-******-8
SL Serv : SIMLOCK SERVER
SL Conf : 310-17-00000000000
SL Prof : 8000000000000000
SL Count: 00 00
BLK1= L1: OPEN
BLK2= L1: OPEN
BLK3= L1: OPEN
BLK4= L1: OPEN
BLK5= L1: OPEN
Provider: CINGULAR - Pacific Bell Wireless;U.S.A.
may natira pa...
My phone B88 duo Whitescreen DONE
My phone B88 duo water damage whitescreen po sya nung dalin sakin ng costumer
action & taken :
1st step : tester ko muna kung shorted, hindi naman po siya shorted kaya nag deside ako open ko na unit at babad ng thinner lahat ng pyesa nya, then tinignan ko yung likod ng LCD at eto nakita ko
puro kalawang na
2nd step : cleaning ko ng thinner at hinang ko lahat ng connector ng LCD no luck pa din
3rd step : apply ko na yung TESTED SOLUTION ko jumper tricks, 2 times na po ako nakagawa ng ganitong sakit at ngayon ko lang po pinost
eto po siya
eto po jumper nya
after po nyan try ko na iopen ang unit
finish product.
Nokia c2-00 blinking, done
c2-00 blinking po nadali sa kulitan....
share ko lng para sa mga baguhang tulad ko...
MXKEY [MxKey Team HTI Flasher Interface (WinUSB) 3], SN: C0842EBB
Using device: USB Phonet and HTI, FW ver: 00.50, SN: 0000135D
Connection status: UHCI:HUB:USB 1.10 (Full-speed)
Driver: nmwcdnsuc, ver: 7.1.32.75
Module ver: 1.0.0.20713(27-03-2012), Library ver: 1.0.0.13992(27-03-2012)
Make sure USB cable, Battery and charger are removed from device.
Insert USB cable, Battery back to device(make sure to have fully charged battery).
Insert Charger or Press phone's power button(if flashing doesnt start automatically)
Waiting for USB ROM device ...
Waiting for USB ROM device ...
Make sure USB cable, Battery and charger are removed from device.
Insert USB cable, Battery back to device(make sure to have fully charged battery).
Insert Charger or Press phone's power button(if flashing doesnt start automatically)
Waiting for USB ROM device ...
Device connected: nmwcdnsuc\Nokia USB Flashing Generic, PORT_ID: 115A81B7
Make sure USB cable, Battery and charger are removed from device.
Insert USB cable, Battery back to device(make sure to have fully charged battery).
Insert Charger or Press phone's power button(if flashing doesnt start automatically)
Waiting for USB ROM device ...
Waiting for USB ROM device ...
Make sure USB cable, Battery and charger are removed from device.
Insert USB cable, Battery back to device(make sure to have fully charged battery).
Insert Charger or Press phone's power button(if flashing doesnt start automatically)
Waiting for USB ROM device ...
Device connected: nmwcdnsuc\Nokia USB Flashing Generic, PORT_ID: 115A81B7
Device synchronized.
CPU: XGOLD 213
Using embedded SBL from MCU.
Sending EBL Loader...OK
Sending EBL ...OK
Getting EBL Version ...
Boot mode: 0xCC
EBL version major/minor: 10.44
EBL version: Quantum_Bootloader_10.44_M1S1
Protocol version suggested by phone: 3
Set baud rate to: 6.50 Mbit/s
Flash ID: 0089 8982 - 23280001 [Intel NU48F512,512 Mbits]
CFI information:
Flash settings: 0/1024, size: 0x04000000
1 Block regions:
512 x 0x00020000 = 0x04000000
EBL ready !
Original IMEI: 35906304508528
IMEI_DATA saved OK
CCC_DATA saved OK
HWC_DATA saved OK
RPL saved to "C:\mobileEx\3.5\data\backup\XGOLD_35906304508528_ back.RPL"
Processing file: rm704__03.99.mcusw
Downloading item CODE:rm704__03.99.mcusw_ebl_psi.fls, num block: 4, size: 26 MB
Erasing area 0x40000000-0x4001FFFE ...OK
Programming completed in 0.359 s
Erasing area 0x40040000-0x4005FFFE ...OK
Programming completed in 0.360 s
Erasing area 0x40060000-0x4015FFFE ...OK
Programming completed in 1.485 s
Erasing area 0x40280000-0x41B3FFFE ...OK
Programming completed in 33.203 s
Checksum verified (0x6C69)
Processing file: rm704__03.99.ppm_sp
Downloading item CUST:package_sp.ppm_ebl_psi.fls, num block: 1, size: 3.68 MB
Erasing area 0x41BC0000-0x41F6E6E6 ...OK
Programming completed in 4.985 s
Checksum verified (0xAF9B)
Processing file: rm704__03.99.image_sp_swhite_059K6B8
Downloading item CUST:package_sp_swhite_059K6B8.image. , num block: 1, size: 10.38 MB
Erasing area 0x421C0000-0x43E1FFFE ...OK
Programming completed in 14.157 s
Checksum verified (0xE3B2)
Total time for flashing process(boot+erase+write) was 9 min 2.922 s
Waiting for USB device removal ...OK
Waiting for USB device arrival ...
Waiting for device boot up ...
Device connected: nmwcdc\Nokia C2-00 USB Phonet, PORT_ID: 7046789
Verifying communication to device OK.
Phone type: RM-704 (C2-00)
SW version: V 03.99 03-04-12 RM-704 (c) Nokia
Imei plain: 35906304508528-5
Product code: 059C8L8
Cellular system: GSM
ASIC ID: 0x0000, type: 11
Ppm Id: SP
Language Pack:
- not available.
Master code: 2443002042
Imei net: 35906304508528
Version: SIMLOCK SERVER
Provider: GSM Test Operator
Counter: 0/3, 0/10
CONFIG_DATA: 0010100000000000
PROFILE_BITS: 800000000003000B
BLOCK1: 1=OPEN, 2=OPEN, 3=OPEN, 4=OPEN, 5=OPEN
BLOCK2: 1=OPEN, 2=OPEN, 3=OPEN, 4=OPEN, 5=OPEN
BLOCK3: 1=OPEN, 2=OPEN, 3=OPEN, 4=OPEN, 5=OPEN
BLOCK4: 1=OPEN, 2=OPEN, 3=OPEN, 4=OPEN, 5=OPEN
BLOCK5: 1=OPEN, 2=OPEN, 3=OPEN, 4=OPEN, 5=OPEN
BLOCK6: 1=OPEN, 2=OPEN, 3=OPEN, 4=OPEN, 5=OPEN
BLOCK7: 1=OPEN, 2=OPEN, 3=OPEN, 4=OPEN, 5=OPEN
FULL FACTORY... OK
Completed in 0.031 s
Nokia USB ROM disconnected.
Samsung E2121,E2121B(Tips)
Share ko lang kung pano malalaman kung software or hardware problem
ang Samsung E2121 and E2121B
karaniwang sira na natatanggap natin sa ginitong unit ay Blinking di po ba
kaya program kaagad ang ginagawa natin!
yung iba naman harware muna bago program...
base on my experience
kapag may tanggap ako na ganitong unit
first step. observation
2nd step. power on ang unit
Hardware. Blinking then off Mild reheat(flash IC) no need to flash its up to you kung gusto mo iflash
Software. Blink lang ng Blink (sure na software yan)
Pero may mga ganyang unit na talagang matitigas hehe...
yan po ay tips lamang para madaling malaman kung hardware or software
salamat sa pag basa...
Myphone T18 Hang Done By ChinaKing Box [SOLVED]
myphone T18 hang lng nang dumating sakin..
action taken: connect ko via usb ng unit no luck! kaya konek ko nlng via rx tx ng unit..
ganito xa dati:
esolda ang rx tx ng unit papuntang #20 at 21 ng blank pcb..d na kelangan baklasin ang casing madali lng ito makita sa dulo ng sim reader..
gaya nito medyo malabo lng...
sa wakas connecting nah!
rebuild imei ko agad kasi kadalasan invalid imei:
testing...ito na xa sa wakas may pang gatas na....
